Box chain (AKA Queen’s Link) is a close relative of Birdcage (AKA Byzantine). Have I mentioned that chain maille weaves have an absurd number of names? *chuckle*
In the charts below, please note that the weave diameters listed are measured on the flat of the chain, not across the diagonal.
If you don’t already know how to make Box chain, you can find instructions for this weave (and six others) on my first DVD. If you’d like to explore this weave, I recommend that you purchase one of these aspect ratio samplers. All the rings in this sampler work well for Box, and they range from 22ga through 10ga. Try out a wide range, and decide for yourself which size(s) you like the best.

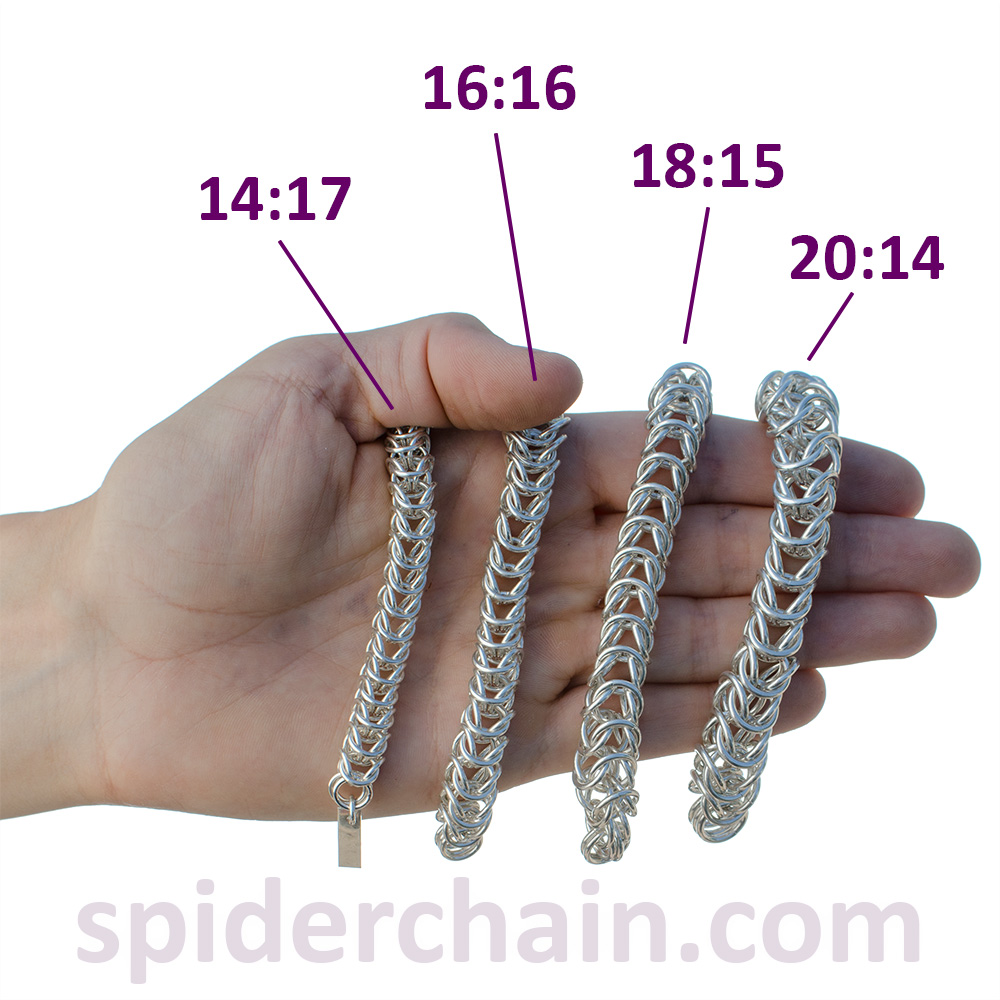

Inch Sizes
| size | 8:22 | 9:21 | 10:20 | 11:19 | 12:18 | 14:17 | 16:16 | 18:15 | 20:14 | 22:13 | 25:12 | 28:11 | 31:10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| rings/inch | 37.5 | 34.5 | 28.5 | 26 | 23 | 20 | 17 | 15 | 14 | 12.5 | 12 | 11.5 | 10 |
| inches/ozt | 20.5 | 15 | 13.5 | 10.4 | 8.3 | 6.5 | 5.5 | 4.3 | 3.3 | 2.7 | 2 | 1.5 | 1.2 |
| weave diameter | 4mm | 5mm | 5.5mm | 6mm | 7mm | 8mm | 9mm | 10.5mm | 12mm | 13mm | 15mm | 16mm | 18mm |
Millimeter Sizes
| size | 3M22 | 3.5M21 | 3.75M20 | 4.25M19 | 4.75M18 | 5.5M17 | 6.25M16 | 6.75M15 | 7.5M14 | 8.5M13 | 10M12 | 11M11 | 12.5M10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| rings/inch | 37.5 | 32 | 31 | 27.5 | 24.5 | 19.5 | 18 | 17 | 15.5 | 13 | 10.5 | 10 | 8.5 |
| inches/ozt | 21.8 | 17 | 12.8 | 10 | 7.9 | 6.7 | 5.2 | 3.8 | 3.2 | 2.5 | 2.3 | 1.6 | 1.4 |
| weave diameter | 4mm | 5mm | 5.5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 11mm | 13mm | 15mm | 16mm | 18mm |
